SKU: 44530

$39.52 (AUD)

Shipping costs and GST (for Australian
customers) are calculated at checkout.

The Brutal™ parting blade holders and available HSS blades are Relativity™ products. These large holders DO NOT SUIT Proxxon lathes. They are designed for large, industrial, metalworking lathes.

Cutting edge height of the 44530 holder is about 30mm, depending on blade overhang, due to a holder-induced 1-degree top rake. Be sure to use a height adjustable toolpost, to perfect the cutting edge height.

The holder aligns the available 44529 HSS blade vertically, with 1.8-degree per side clearance and bottom bevel.
M1 grade bevel-top HSS blades 44529 (3.2 x 22 x 152mm) are sold separately, NOT INCLUDED with the holder.

Clamping height is 35mm over the milled screw clamp zone 108mm x 16mm.
Overall holder length is 177mm and a generous front underhang provides stable blade support under heavy cutting forces.

The bevel clamp screw uses a square nut with 12mm square ring spanner provided.

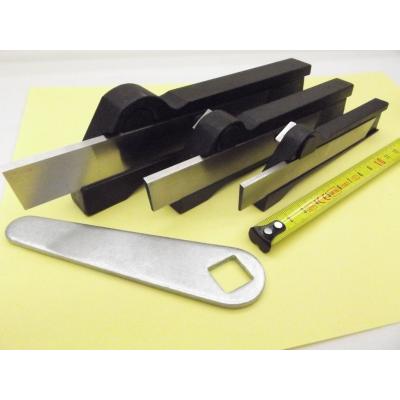

Included components:

• Brutal™ 30mm edge height holder, hardened, tempered and blackened
• Integrated bevel clamp and screw
• 12mm square clamp nut
• 12mm square ZP ring spanner

Technical specifications

• 30mm nominal cutting edge height with 1-degree holder-induced top rake
• 35mm nominal clamping height over 108mm x 16mm clamp zone
• 177mm overall length
• Accepts optional Brutal™ HSS blade 44529

The holder induces a 1-degree top rake in any fitted blade

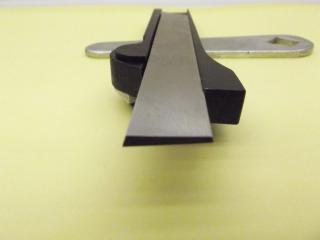

Optional 44529 blade has dual side clearances, side rake and bottom bevel
