Brutal™ parting blade holder 19mm edge height


SKU: 44519

$34.58 (AUD)

Shipping costs and GST (for Australian
customers) are calculated at checkout.

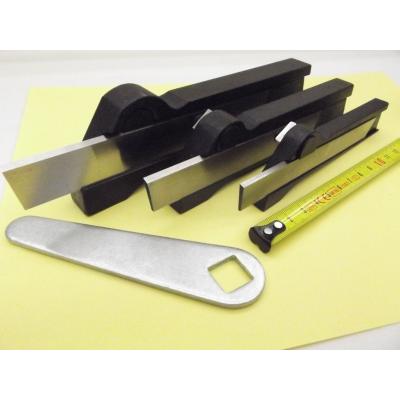

The Brutal™ parting blade holders and available HSS blades are Relativity™ products. These large holders DO NOT SUIT Proxxon lathes. They are designed for large, industrial, metalworking lathes.

Cutting edge height of the 44519 holder is about 19mm, depending on blade overhang, due to a holder-induced 1-degree top rake. Be sure to use a height adjustable toolpost, to perfect the cutting edge height.

The holder aligns the available 44518 HSS blade vertically, with 1.8-degree per side clearance and bottom bevel.
M1 grade bevel-top HSS blades 44518 (2.4 x 16 x 127mm) are sold separately, NOT INCLUDED with the holder.

Clamping height is 22mm over the milled screw clamp zone 75mm x 10mm.
Overall holder length is 127mm and a generous front underhang provides stable blade support under heavy cutting forces.

The bevel clamp screw uses a square nut with 12mm square ring spanner provided.

Included components:

  • Brutal™ 19mm edge height holder, hardened, tempered and blackened
  • Integrated bevel clamp and screw
  • 12mm square clamp nut
  • 12mm square ZP ring spanner

Technical specifications

  • 19mm nominal cutting edge height with 1-degree holder-induced top rake
  • 22mm nominal clamping height over 75mm x 10mm clamp zone
  • 127mm overall length
  • Accepts optional Brutal™ HSS blade 44518

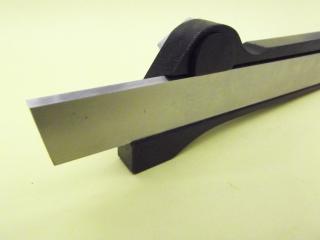

The holder induces a 1-degree top rake in any fitted blade
The holder induces a 1-degree top rake in any fitted blade

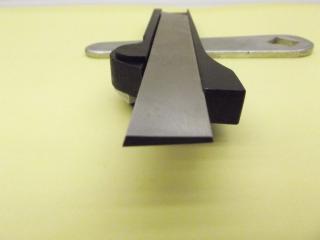

Optional 44518 blade has dual side clearances, side rake and bottom bevel
Optional 44518 blade has dual side clearances, side rake and bottom bevel
